Product
BD10~BD20 Series
Type: BD Adjustable Series
Input Size:
Processed Materials:
Applications:
Detailed description
| Parameters |
| Model | Stroke （mm） S | Max.Energy/Cycle （Nm) ET | Max.Energy/Hour （Nm/h） ETC | Effective Weight （kg） We | Recoil Force （N) | Weight （kg） | |
| Min. | Max. | ||||||
| BD10-07(B) | 7 | 6 | 14500 | 1.0-20 | 2 | 5 | 0.03 |
| BD12-10(B) | 10 | 16 | 24500 | 1-60 | 4 | 7 | 0.05 |
| BD12-14(B) | 14 | 22 | 35500 | 1-80 | 4 | 9 | 0.06 |
| BD14-12(B) | 12 | 28 | 46500 | 1-150 | 4 | 9 | 0.08 |
| LRBD14-12(B) | 12 | 28 | 46500 | 25-495 | 4 | 9 | 0.08 |
| BD16-12(B) | 12 | 33 | 55000 | 1-200 | 5 | 10 | 0.1 |
| LRBD16-12(B) | 12 | 33 | 55000 | 30-660 | 5 | 10 | 0.1 |
| BD20-16(B) | 16 | 65 | 65000 | 1.5-400 | 7 | 14 | 0.18 |
| LRBD20-16(B) | 16 | 65 | 65000 | 70-1230 | 7 | 14 | 0.18 |

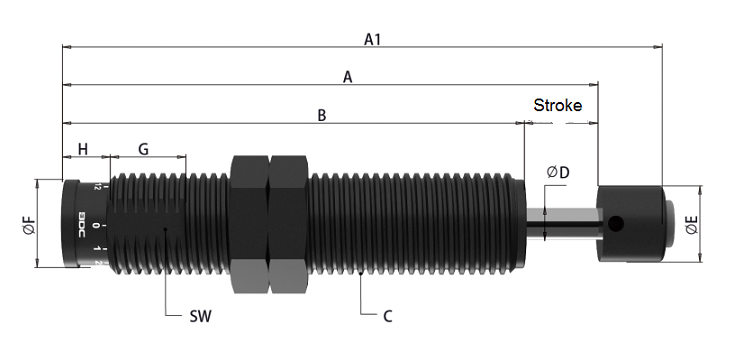

| Dimension（Unit：mm） |
| Model | A1 | A | B | C | D | E | F | G | H | SW |
| BD10-07(B) | 74.5 | 64.5 | 57.5 | M10x1.0 | 3 | 8.5 | 8 | 7 | 7.7 | 8.8 |
| BD12-10(B) | 86 | 75 | 65.5 | M12x1.0 | 4 | 10.5 | 10 | 12 | 7 | 11 |
| BD12-14(B) | 95.5 | 84.5 | 70.5 | M12x1.0 | 4 | 10.5 | 10 | 12 | 7 | 11 |
| BD14-12(B) | 96 | 85 | 73 | M14x1.5 | 4 | 10.5 | 12 | 12 | 7 | 13 |
| LRBD14-12(B) | 96 | 85 | 73 | M14x1.5 | 4 | 10.5 | 12 | 12 | 7 | 13 |
| BD16-12(B) | 96 | 84.5 | 72.5 | M16x1.5 | 5 | 12 | 14 | 12 | 7 | 14 |
| LRBD16-12(B) | 96 | 84.5 | 72.5 | M16x1.5 | 5 | 12 | 14 | 12 | 7 | 14 |
| BD20-16(B) | 115 | 97.5 | 81.5 | M20x1.5 | 6 | 17.8 | 18 | 15 | 13 | 18.5 |
| LRBD20-16(B) | 115 | 97.5 | 81.5 | M20x1.5 | 6 | 17.8 | 18 | 15 | 13 | 18.5 |
