BC06~BC14 Series
Type: BC Self-Compensating Series
Input Size:
Processed Materials:
Applications:
Detailed description
Parameters
| Model | Stroke （mm） S | Max.Energy/Cycle （Nm） ET | Max.Energy/Hour （Nm/h） ETC | Effective Weight (kg) We | Recoil ;Force (N) | Weight (g) | |||
| -1(Soft) | -2（Middle） | -3（Hard） | Min. | Max. | |||||
| BC06-04(B) | 4 | 10 | 3000 | 5.1-1.1 | 7.9-2.8 | 1.6-4.0 | 2.2 | 3 | 4 |
| BC08-06(B) | 6 | 5 | 8100 | 0.6-2.7 | 2.5-7.6 | 7.2-22 | 2.4 | 4 | 14 |
| BC10-08(B) | 8 | 10 | 14800 | 2.9-8.7 | 7.0-20 | 17-54 | 3.3 | 7 | 21 |
| BC12-10(B) | 10 | 16 | 34000 | 1.2-2.2 | 1.8-9.5 | 8.0-65 | 6.5 | 13.5 | 38 |
| BC14-12(B) | 12 | 25 | 41000 | 2.0-10 | 8-50 | 35-160 | 6.9 | 14 | 67 |
| BC14-15(B) | 15 | 35 | 51200 | 2.4-19 | 10-47 | 41-170 | 7.2 | 14.6 | 74 |

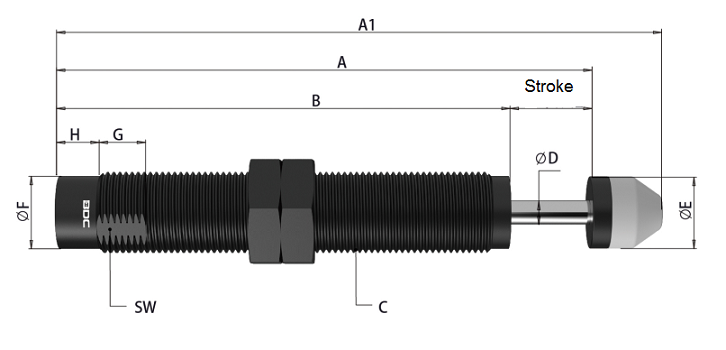

Dimension（Unit：mm）
| Model | A1 | A | B | C | D | E | F | G | H | SW |
| BC06-04(B) | 36.5 | 32.5 | 28.5 | M6x0.75 | 1.8 | 4.6 | 5.1 | 0.7 | 4 | 1.5 |
| BC08-06(B) | 50 | 42.5 | 36.5 | M8x1.0 | 3 | 6.8 | 6.7 | 0.7 | 5 | 1.5 |
| BC10-08(B) | 57 | 50 | 42.5 | M10x1.0 | 3 | 7.5 | 8.4 | 0.8 | 5 | 1.5 |
| BC12-10(B) | 70.5 | 59.5 | 49.5 | M12x1.0 | 4 | 10.5 | 10 | 5 | 6 | 10 |
| BC14-12(B) | 90 | 79 | 67 | M14x1.5 | 4 | 10.5 | 12 | 13 | 2 | 12 |
| BC14-15(B) | 101.5 | 90.5 | 75.5 | M14x1.5 | 4 | 10.5 | 12 | 13 | 2 | 12 |
